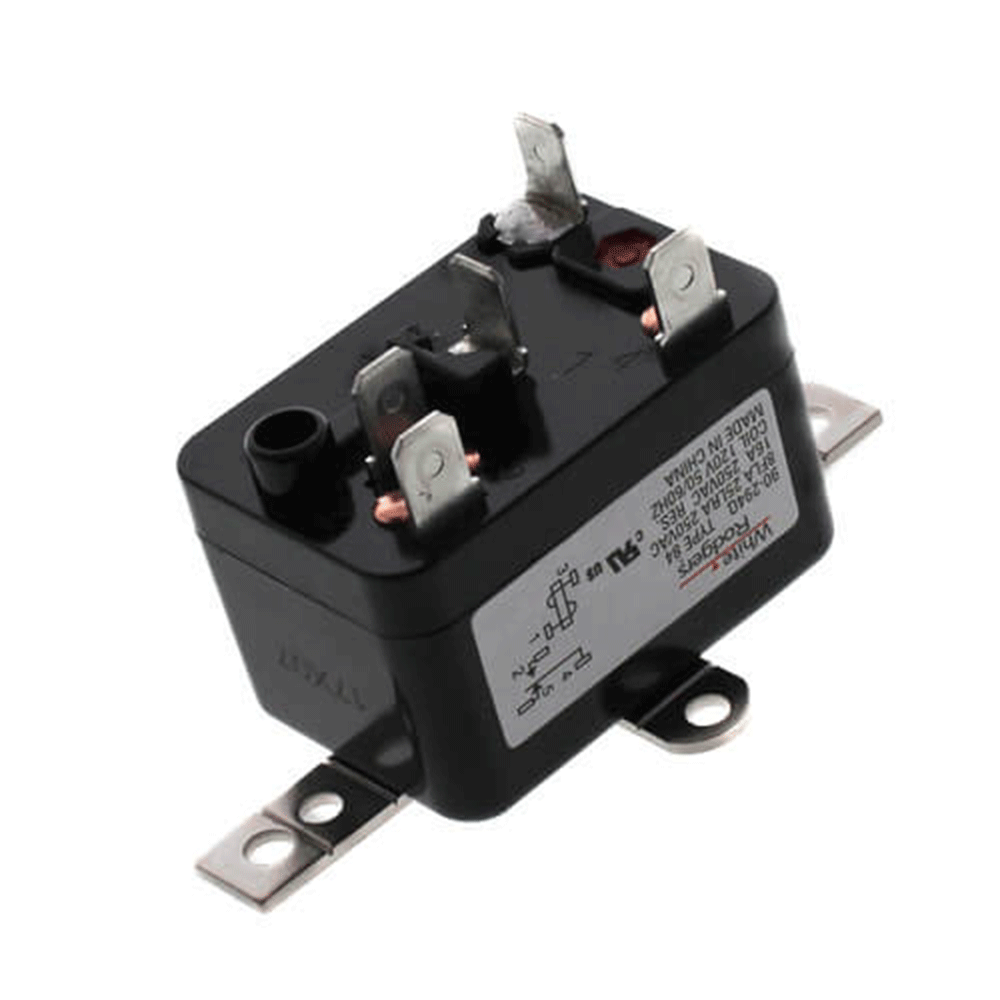

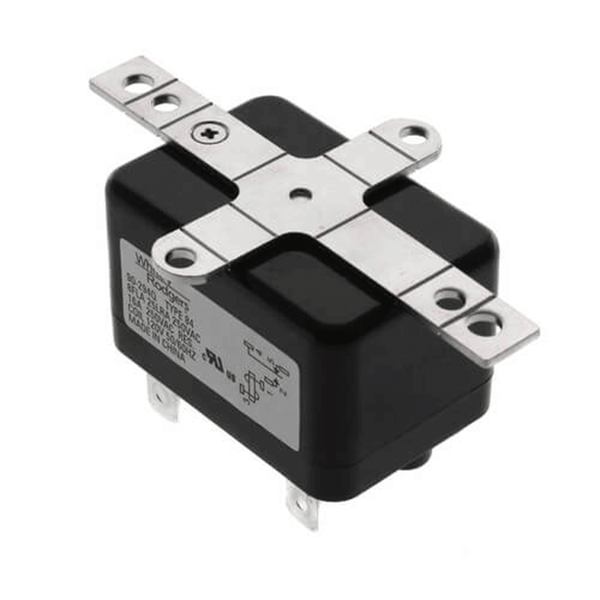

White-Rodgers 90-294Q, 120V SPDT Relay
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The White-Rodgers 90-294Q is a quiet, compact SPDT fan relay with a completely enclosed design for both heating and cooling applications. This Single Pole, Double Throw fan relay is for general-purpose use and can be used to switch both single and two speed fan motors, relays, solenoids, and much more!
Use for BOTH heating and cooling and as a general-purpose fan relay.
Supports quiet, reliable, and economical device operation.
Additional Information
Type 84 Fan Relay
115/120 VAC Coil
SPDT (Single Pole Double Throw)
Coil Data: 2,000 Ohms DC Resistance, 25 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush)
Emerson is the Manufacturer
Product Dimensions: 3 x 1.88 x 1.62 inches
Temperature Range (F): -40°F to 150°F
Type: SPDT
Voltage: 120v
Hertz: 60 50
Electric Connection: 1/4" Quick-Connect Terminals
This item has been discontinued by the manufacturer. Get it while you can!
