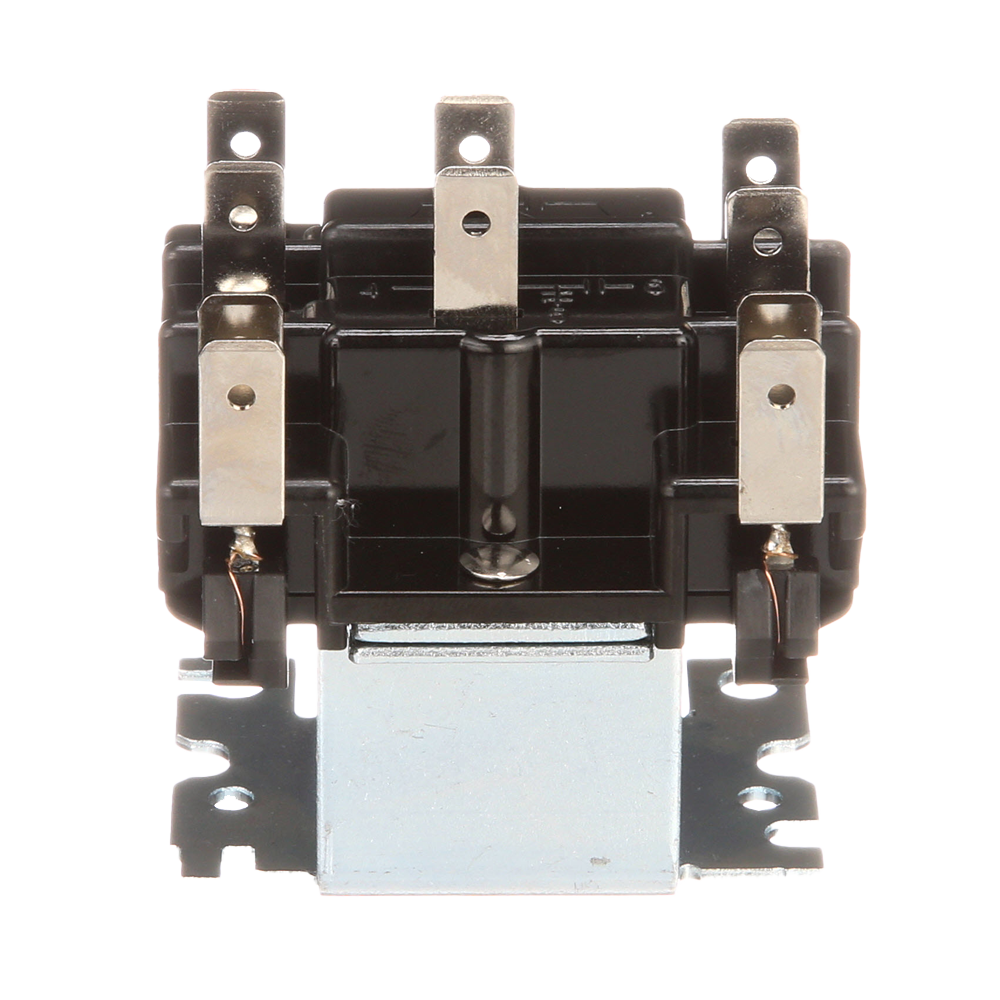

White-Rodgers 90-340 24VAC Two Pole Double Throw Semi-Enclosed Relay
$13.97
Out of Stock
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
A Two Pole Double Throw Semi-Enclosed Relay 90-340 Fits Fan Control Centers 90-112, 90-113, 90-118E and 90-119.
Relay 24 vac coil, dpdt contacts, 12.0a (125 vac), 6.0a (240/277 vac) full load inductive, 60.0a (125 vac), 35.0a (240/277 vac) locked rotor, 15.0a (277 vac) resistive, coil 17.5 ohms resistance, 334 ma, 9.5 va (nominal), 22 va inrush (max).
Features:
Easy to install
Suited for use in vending machines, appliances, heating and air conditioning applications and general purpose switching
