90-342

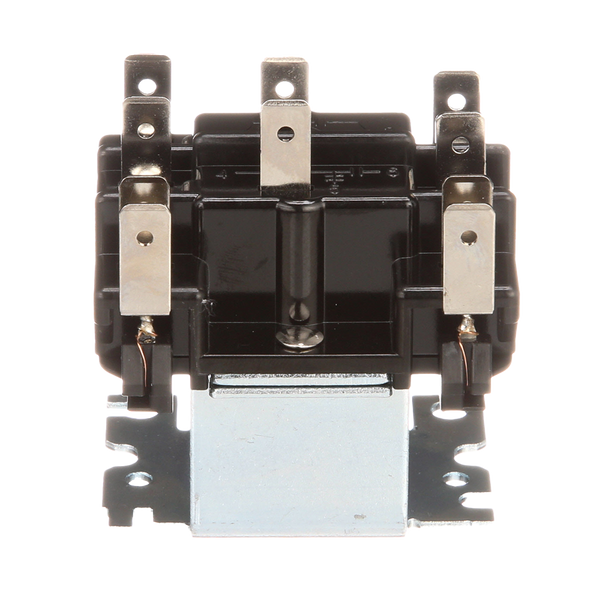

White-Rodgers 90-342 208/240VAC Two Pole Double Throw Semi-Enclosed Relay

4 items left
A Two Pole Double Throw Semi-Enclosed Relay.   Relay 208/240 vac coil, dpdt contacts, 12.0a (125 vac), 6.0a (240/277 vac) full load inductive, 60.0a (125 vac), 35.0a (240/277 vac) locked rotor, 15.0a (277 vac) resistive, coil 1600 ohms resistance, 38 ma, 9.5 va (nominal), 22 va inrush (max). Features: Easy to install Suited for use in vending machines, appliances, heating and air conditioning applications and general purpose switching
