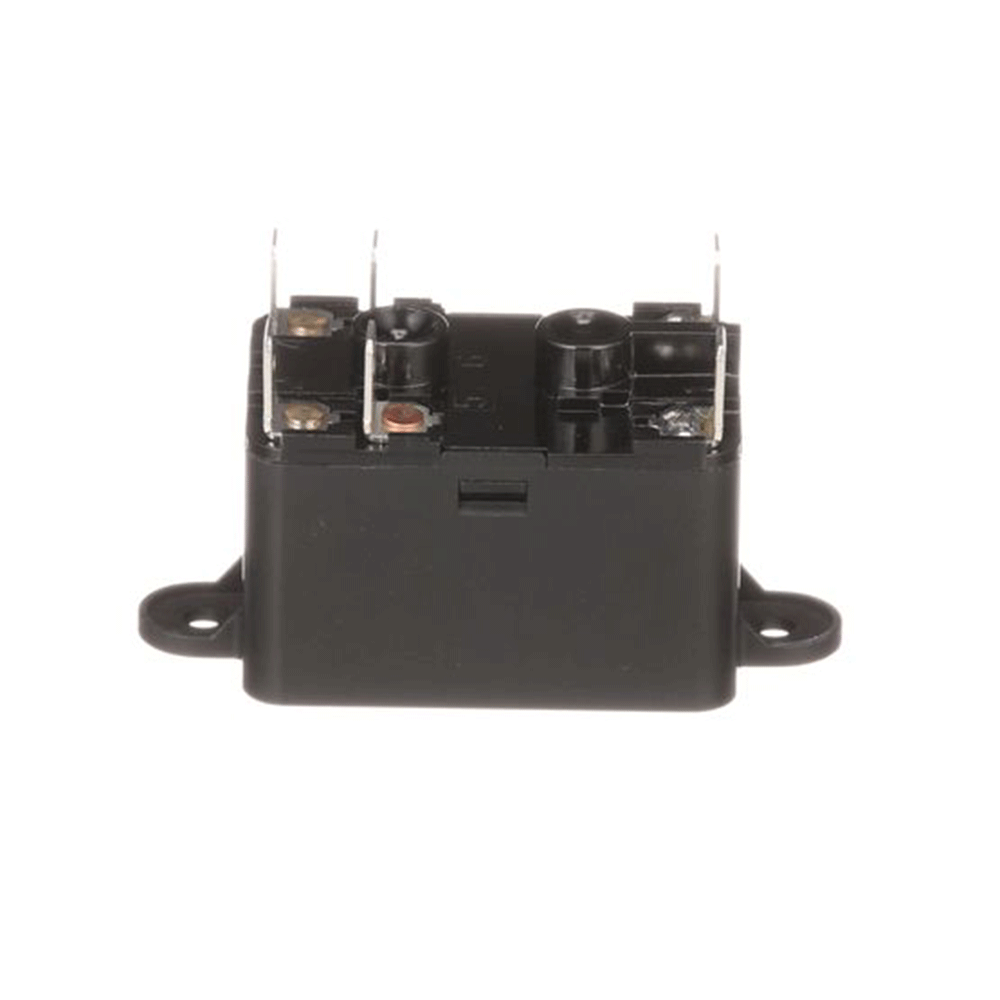

White-Rodgers 90-380 24-VAC Heavy-Duty General-Purpose Fan Relay
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.
The White-Rodgers 90-380 is a 24 VAC heavy-duty general purpose relay that can operate in any position.
Features
Compact, totally enclosed design.
For heating and cooling applications and general switching.
Quiet, reliable and economical.
Specifications
Switch Action: SPNO/SPNC
Coil Voltage: 24 Vac, 50/60 Hz
Res DC OHMS: 77
Coil Data Nom. Current MA: 125
Coil Data Nominal VA Sealed: 3
Electrical: Inrush 4 VA
Coils|Insulation: Class B
Coils, Termination: 1/4” Quick Connect
Coils, Operate: 85% of nominal coil voltage; 110% maximum safe operate
Coils, Duty Cycle: Continuous
