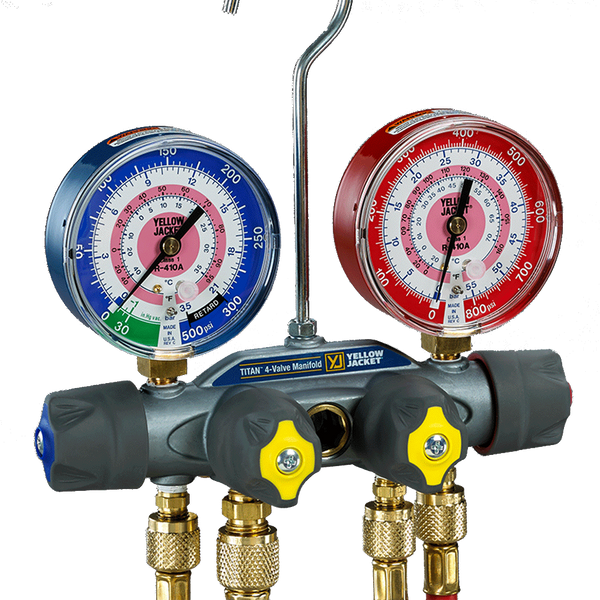

Yellow Jacket 49987 Titan 4-Valve Mechanical Gauge Set with Hose
Specs not yet added for this product. See the Description tab for full details.
Please refer to the product description or manufacturer documentation for included items.

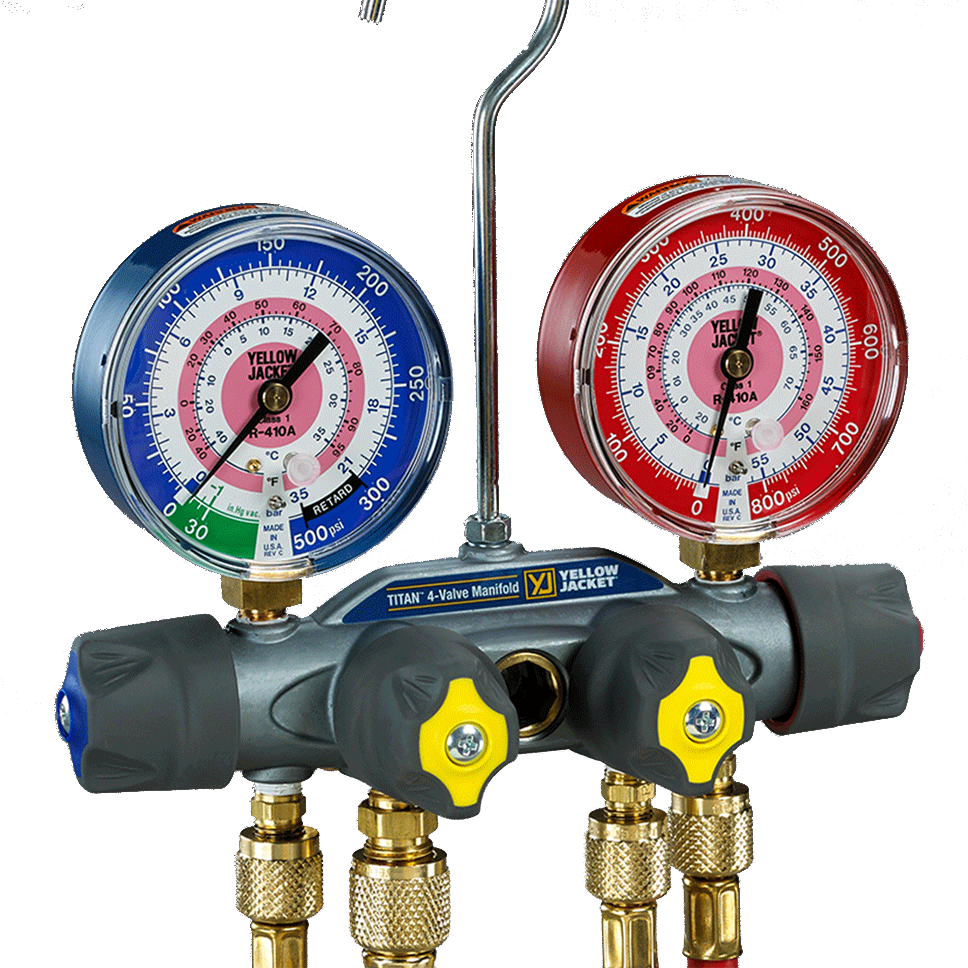

The Yellow Jacket 49987 is a 4-valve Titan manifold that comes with 60″ PLUS II™ RYB and 3/8″ x 45°, R/B gauges, psi, R22/134a/404A – °F. The Titan Test and Charging Manifold is the first forged aluminum manifold in the industry. The aluminum alloy construction makes for a lightweight gauge easy for handling with the durability and reliability required for repeated use.
Features
Fourth hose to enable connection to hi-/lo-sides, refrigerant tank and recovery unit or vacuum pump for diagnostics, evacuation and charging without switching hoses
3/8″ Vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings are 1/4″)
Large, easy-to-read 3-1/8″ (90 mm) steel case red and blue, 1% accuracy (Class 1) gauges
Front access for easy field recalibration
Double “O” ring piston for reliability and long service life
Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extend the life of the seats
Contoured easy-grip handles for positive control; color-coded for ready identification
Sight glass to easily view refrigerant movement and condition during charging and recovery
Optional protective gauge boots available
Heavy duty hook won’t pull out
Also available with 3-1/2″ (80 mm) red and blue liquid-filled gauges
Manifold and hose holder fittings 1/4″-3/8″-1/4″-1/4″ unless otherwise identified
Made in the USA
Includes hoses
