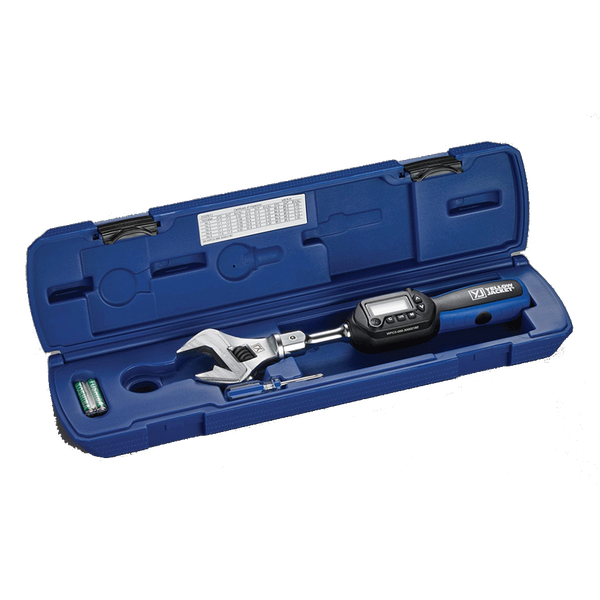

Yellow Jacket 60648 Adjustable Digital Torque Wrench

The Yellow Jacket Adjustable Digital Torque Wrench captures and displays torque measurement in real time mode, providing users with unprecedented levels of control and accuracy.

For convenience, the torque wrench has nine common preset torque values, which display on the digital screen as the flare nut is tightened. For added assurance, indicator lights increase as the torque value is approached.

The adjustable wrench head means you can leave your other wrenches at home, and the protective carrying case keeps it safe as you carry it from job site to job site.

Features

Adjustable spanner head

Integrated notch on wrench head to ensure tight fit on flare nut

Digital torque value readout

+/- 2% accuracy

CW and CCW operation

Peak hold and track mode selectable

Buzzer and LED indicator for the nine pre-set target torques

Four user selectable units of measure (ft. lb., in. lb., N-m, kg-cm) • 50 data memory for recall and joint torque auditing

Auto sleep (after about five minutes idle)

Water contact indicator

Specifications

Square Drive: 3/8 in.
Length: 10.6 in. (270 mm)
Maximum Torque: 62.7 ft. lb. (85 N-m) 752 in. lb. (867 kg-cm)
Torque Measuring Range: 3.1 - 62.7 ft. lb. (4.2 to 85 N-m) - 37 - 752 in. lb. (43 - 867 kg-cm)
Guaranteed Accuracy Range: 12.5 - 62.7 ft. lb. (17 - 85 N-m)- 150 - 752 in. lb. (173 - 867 kg-cm)
Accuracy: CW: ±2%; CCW: ±3%
Data Memory Size: 50
Pre-Sets: 9
LED Indicators: 6 (1 red, 5 green)
Operation Mode: Peak hold/track
Unit Selection: ft. lb., in. lb., N-m, kg-cm
Gear Teeth: 52
Head Open Size: .2 - 1.18 inches (5 - 30 mm)
End Fitting Size (w x h): .35 in. x .47 in. (9 x 12 mm)
Axial Distance: 17.5mm
Battery Type: 2 X AAA (Non-Rechargeable)
Operating Temperature: 14°F ~ 140°F (-10°C ~ 60°C)
Storage Temperature: 4°F ~ 158°F (-20°C ~ 70°C)
Humidity: Up to 90% non-condensing
Drop Test: 1 m
Vibration Test: 10G
